Material: Brass with nickel-plated
Working Temperature: -40 deg to 100 deg, short time to 120 deg
Shape: hexagonal or round
Certificate: CE,IP68
Features: This product can transform different threads OD freely; Change larger Thread to smaller Thread.
Function: A reducer is used if the dimensions of existing tapped Holes are too large for a given gland. It provides a means of connection between cable entry devices and equipment having dissimilar Threads.
Accessories: Locknut, Sealing Washer
Note: We can produce different thread lengths and the other sides of threads (not standard) as the requirement of customer.
| Reducer | ||||||
| Circle Series | Hexagon series | Item | Thread length (GL) mm | Height (H)mm | Hexagon size (D)mm | |
| Male thread (D1) | ||||||
| JX-M16/12A-RE | JX-M16/12B-RE | M16*1.5 | M12*1.5 | 6 | 8.5 | 18 |
| JX-M20/16A-RE | JX-M20/16B-RE | M20*1.5 | M16*1.5 | 6.5 | 9 | 24 |
| JX-M25/20A-RE | JX-M25/20B-RE | M25*1.5 | M20*1.5 | 7.5 | 10 | 30 |
| JX-M32/25A-RE | JX-M32/25B-RE | M32*1.5 | M25*1.5 | 8 | 11.5 | 40 |
| JX-M40/32A-RE | JX-M40/32B-RE | M40*1.5 | M32*1.5 | 9 | 12.5 | 43 |
| JX-M50/40A-RE | JX-M50/40B-RE | M50*1.5 | M40*1.5 | 10 | 14 | 57 |
| JX-M63/50A-RE | JX-M63/50B-RE | M63*1.5 | M50*1.5 | 10 | 14 | 64 |
| JX-PG9/PG7A-RE | JX-PG9/PG7B-RE | PG9 | PG7 | 6 | 8.5 | 17 |
| JX-PG11/PG9A-RE | JX-PG11/PG9B-RE | PG11 | PG9 | 6.5 | 8.5 | 20 |
| JX-PG13.5/PG11A-RE | JX-PG13.5/PG11B-RE | PG13.5 | PG11 | 6.5 | 9 | 22 |
| JX-PG16/PG13.5A-RE | JX-PG16/PG13.5B-RE | PG16 | PG13.5 | 6.5 | 9.5 | 24 |
| JX-PG21/PG16A-RE | JX-PG21/PG16B-RE | PG21 | PG16 | 7.5 | 10 | 30 |
| JX-PG29/PG21A-RE | JX-PG29/PG21B-RE | PG29 | PG21 | 8 | 11.5 | 40 |
| JX-PG36/PG29A-RE | JX-PG36/PG29B-RE | PG36 | PG29 | 9 | 12.5 | 50 |
| JX-PG42/PG36A-RE | JX-PG42/PG36B-RE | PG42 | PG36 | 10 | 14 | 57 |
| JX-PG48/PG42A-RE | JX-PG48/PG42B-RE | PG48 | PG42 | 10 | 14 | 64 |
| JX-NPT1/2"-NPT3/8"A-RE | JX-NPT1/2"-NPT3/8"B-RE | NPT1/2" | NPT3/8" | 6.5 | 9 | 24 |
| JX-NPT3/4"-NPT1/2"A-RE | JX-NPT3/4"-NPT1/2"B-RE | NPT3/4" | NPT1/2" | 7.5 | 10 | 30 |
| JX-NPT1"-NPT3/4"A-RE | JX-NPT1"-NPT3/4"B-RE | NPT1" | NPT3/4" | 8 | 11.5 | 40 |
| JX-NPT1-1/4"-NPT1"A-RE | JX-NPT1-1/4"-NPT1"B-RE | NPT1-1/4" | NPT1" | 9 | 12.5 | 50 |

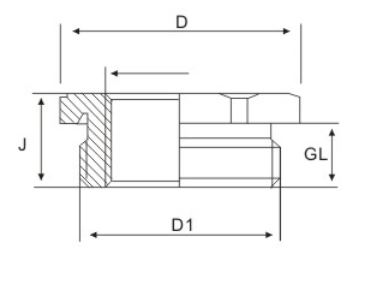

The Drawing of Reducer:
