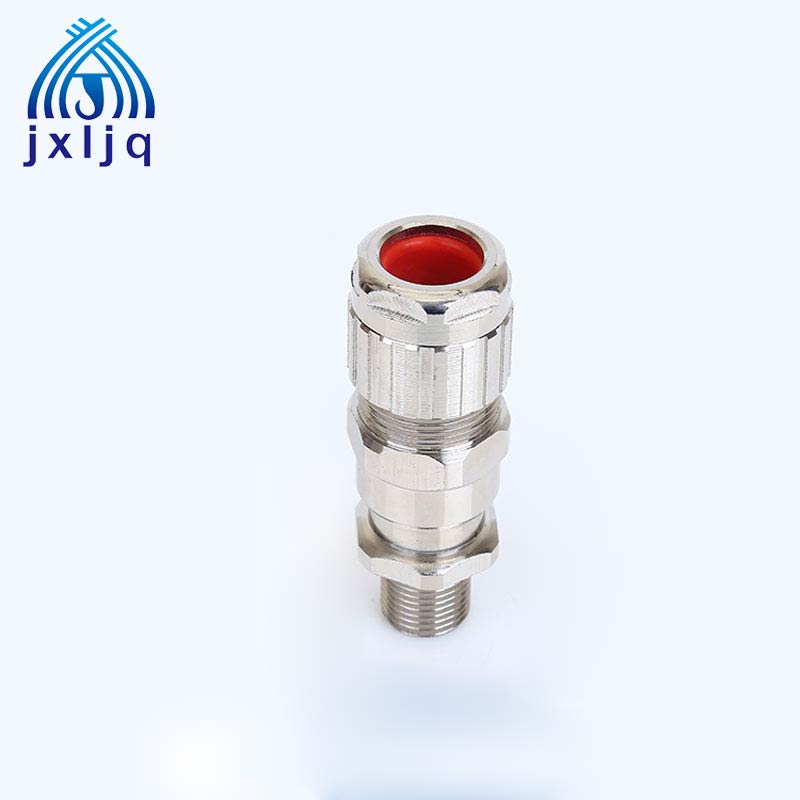

Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
Features:
With quick installation, safety, reliability and other characteristics of good protection.
1. It is Made of copper or stainless steel material;
2. Cable is sealed with gasketing;
3. With reliable installation, good protection and explosion-proof function;
4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lP66
Function: Suitable for clamping and fixing various types of armored cable.
1. Can be used in Hazardous division 1&2;
2. Can be used in Explosive gas atmosphere;

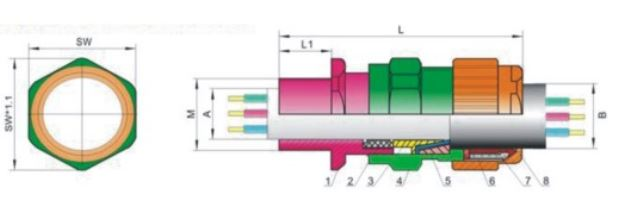

The Drawing:
1. Inlet
2. Sealing ring
3. Taper sleeve
4. middle connecting body
5. Covering ring
6. Lock Jaw
7. Sealing ring
8. Compression nut
| Metric thread(M) | Outer diameter of cable(mm) | SW (mm) | L (mm) | L1 (mm) | |
| A | B | ||||
| JX-5-EX-M16 | 4-8 | 5.5-12 | 24 | 80 | 15 |
| JX-5-EX-M20A | 6.5-10.5 | 9.5-16 | 27 | 80 | 15 |
| JX-5-EX-M20B | 10-14.5 | 12.5-20 | 30 | 80 | 15 |
| JX-5-EX-M25 | 12.5-19.5 | 16.9-26 | 36 | 88 | 15 |
| JX-5-EX-M32 | 19-25.5 | 22-33 | 45 | 92 | 15 |
| JX-5-EX-M40 | 25-31 | 28-41 | 57 | 98 | 15 |
| JX-5-EX-M50 | 31.5-37 | 36-52.6 | 65 | 122 | 15 |
| JX-5-EX-M63 | 42.5-55 | 46-65.3 | 81 | 122 | 15 |
| JX-5-EX-M75 | 54.5-64 | 58-78 | 100 | 122 | 18 |
| JX-5-EX-G1/2A | 4-8 | 5.5-12 | 24 | 80 | 15 |
| JX-5-EX-G1/2B | 6.5-10.5 | 9.5-16 | 27 | 80 | 15 |
| JX-5-EX-G3/4 | 10-14.5 | 12.5-20 | 30 | 80 | 15 |
| JX-5-EX-G1 | 12.5-19.5 | 16.9-26 | 36 | 88 | 15 |
| JX-5-EX-G11/4 | 19-25.5 | 22-33 | 45 | 92 | 15 |
| JX-5-EX-G11/2 | 25-31 | 28-41 | 57 | 98 | 15 |
| JX-5-EX-G2 | 31.5-37 | 36-52.6 | 65 | 122 | 15 |
| JX-5-EX-G2 1/2 | 42.5-55 | 46-65.3 | 81 | 122 | 15 |
| JX-5-EX-G3 | 54.5-64 | 58-78 | 100 | 122 | 18 |
| JX-5-EX-NPT1/2A | 4-8 | 5.5-12 | 24 | 80 | 15 |
| JX-5-EX-NPT1/2B | 6.5-10.5 | 9.5-16 | 27 | 80 | 15 |
| JX-5-EX-NPT3/4 | 10-14.5 | 12.5-20 | 30 | 80 | 15 |
| JX-5-EX-NPT1 | 12.5-19.5 | 16.9-26 | 36 | 88 | 15 |
| JX-5-EX-NPT1 1/4 | 19-25.5 | 22-33 | 45 | 92 | 15 |
| JX-5-EX-NPT1 1/2 | 25-31 | 28-41 | 57 | 98 | 15 |
| JX-5-EX-NPT2 | 31.5-37 | 36-52.6 | 65 | 122 | 15 |
| JX-5-EX-NPT2 1/2 | 42.5-55 | 46-65.3 | 81 | 122 | 15 |
| JX-5-EX-NPT3 | 54.5-64 | 58-78 | 100 | 122 | 18 |
