Product
Material: H62, SS304, 316
Surface Treatment: Nickel Plating
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
Protection Grade: IP66-10 Bars, (screwed – on part)
Working Temperature: Static from -40°C to 100°C, short time to 120°C
Dynamic from -20°C to 80°C, short time to 100 without halide
Environmental Conditions: High-temperature and atrocious.
Note: The above mentioned is only used for the specification of pipe thread, thread specification for metric or NPT can be produced.

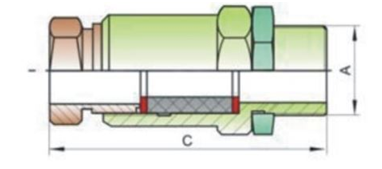

| Ex Clamp Sealing Joint JX4 - G Thread | |||
| Code | A End Pipe Thread |
Cable Range (mm) |
Length C (mm) |
| JX-4-EX-10 | G1/2 | 7-10 | 63 |
| JX-4-EX-14 | G3/4 | 9-14 | 64 |
| JX-4-EX-18 | G1 | 12-18 | 74 |
| JX-4-EX-26 | G1 1/4 | 15-26 | 84 |
| JX-4-EX-30 | G1 1/2 | 18-30 | 86 |
| JX-4-EX-42 | G2 | 25-42 | 86 |
| JX-4-EX-55 | G2 1/2 | 29-55 | 100 |
| JX-4-EX-65 | G3 | 29-65 | 100 |
| JX-4-EX-80 | G4 | 41-80 | 100 |
