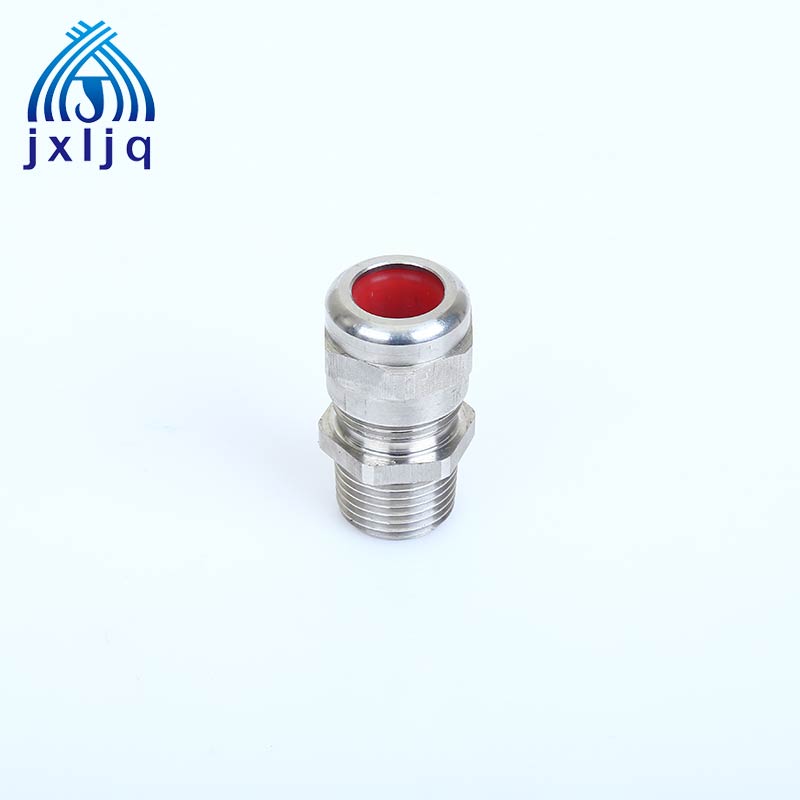

Material: H62, SS304,316
Surface Treatment: Nickel Plating, passivation
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
Fireproof Classification: V0 (UL94)
Protection Grade: IP66-10 Bars, (screwed – on part)
Working Temperature: Static from -40°C to 100°C, short time to 120°C
Dynamic from -20°C to 80°C, short time to 100 without halide
Environmental Conditions: High-temperature and atrocious.

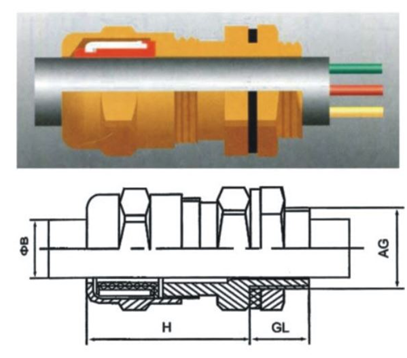

The Drawing :
| Code | AG Thread | Cable Outer diameter (B) | Max. Length (H) | Thread Length (mm) | Six Angle Size | ||
| Metric | NPT,G | Min | Max | On the edge | |||
| JX-1-EX-12 | M20*1.5 | 1/2’’ | 5.5 | 12 | 30 | 15 | 24 |
| JX-1-EX-16 | M20*1.5 | 1/2’’ | 9.5 | 16 | 30 | 15 | 24 |
| JX-1-EX-20.5 | M20*1.5 | 1/2’’-3/4’’ | 12.5 | 20.5 | 35 | 15 | 30 |
| JX-1-EX-26 | M25*1.5 | 3/4’’-1’’ | 16.9 | 26 | 35 | 15 | 36 |
| JX-1-EX-33 | M32*1.5 | 1’’-11/4’’ | 22 | 33 | 39 | 15 | 46 |
| JX-1-EX-41 | M40*1.5 | 11/4’’-11/2’’ | 28 | 41 | 48 | 15 | 55 |
| JX-1-EX-52.6 | M50*1.5 | 11/2’’-2’’ | 36 | 52.6 | 53 | 15 | 65 |
| JX-1-EX-65.3 | M63*1.5 | 2’’-21/2’’ | 46 | 65.3 | 58 | 15 | 80 |
| JX-1-EX-78 | M70*2.0 | 21/2’’-3’’ | 57 | 78 | 65 | 15 | 90 |
