Material: Stainless Steel304,316L,H62
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
Features:
With quick installation, safety, reliability and other characteristics of good protection.
1. It is Made of copper or stainless steel material;
2. Cable is sealed with gasketing;
3. With reliable installation, good protection and explosion-proof function;
4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lP66
Function: Suitable for clamping and fixing various types of armored cable.
It is widely used for clamping oil exploitation, oil refining and chemical industry, military and other hazardous locations and sealed cable;
It is applicable to explosive gas environment 1 zone, 2 zone places;
It is suitable for places of combustible dust environment 20 zone, 21 zone 22 zone;
It is suitable forⅡA，ⅡB，ⅡC explosive gas environment.

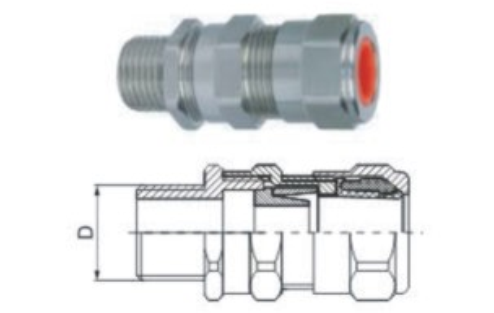

The Drawing:
| Code | specification(D) | Suitable for sealing cable diameter | Thread | Length |
(φ)max diameter |
Armored layer thickness Range(mm) |
Weight(kg) | ||||
|
In addition to armored cable diameter(outlet) |
Outside diameter of cable(wire) |
Cable outside diameter plional(inline) |
|||||||||
| JX-7-EX-12 | M20×1.5 | NPT1/2” | G1/2” | ＜10.5 | 5.5-12 | - | 15 | 66 | 30 | 0.3-1.0 | 0.16 |
| JX-7-EX-16 | M20×1.5 | NPT1/2” | G1/2” | ＜10.5 | 9.5-16 | - | 15 | 66 | 30 | 0.3-1.0 | 0.16 |
| JX-7-EX-20.5A | M20×1.5 | NPT1/2” | G1/2” | ＜14.5 | 12.5-20.5 | 43263 | 15 | 68 | 30 | 0.3-1.0 | 0.15 |
| JX-7-EX-20.5B | M25×1.5 | NPT3/4” | G3/4” | ＜14.5 | 12.5-20.5 | 43358 | 15 | 68 | 37 | 0.3-1.0 | 0.2 |
| JX-7-EX-26A | M25×1.5 | NPT3/4” | G3/4” | ＜19.5 | 17-26 | 43358 | 15 | 73 | 37 | 0.4-1.2 | 0.2 |
| JX-7-EX-26B | M32×1.5 | NPT1” | G1” | ＜19.5 | 17-26 | 14-22 | 19 | 77 | 45 | 0.4-1.2 | 0.23 |
| JX-7-EX-33A | M32×1.5 | NPT1” | G1” | ＜25.5 | 22-33 | 14-22 | 19 | 81 | 45 | 0.4-1.4 | 0.21 |
| JX-7-EX-33B | M40×1.5 | NPT1 1/4” | G1 1/4” | ＜25.5 | 22-33 | 19-28 | 19 | 81 | 55 | 0.6-1.9 | 0.3 |
| JX-7-EX-41A | M40×1.5 | NPT1 1/4” | G1 1/4” | ＜31 | 28-41 | 24-33 | 19 | 88 | 55 | 0.6-2.2 | 0.26 |
| JX-7-EX-41B | M50×1.5 | NPT1 1/2” | G1 1/2” | ＜31 | 28-41 | 29-41 | 19 | 88 | 65 | 0.8-2.3 | 0.36 |
| JX-7-EX-52.5A | M50×1.5 | NPT1 1/2” | G1 1/2” | ＜37 | 36-52.5 | 29-41 | 19 | 96 | 65 | 0.8-2.3 | 0.35 |
| JX-7-EX-52.5B | M63×1.5 | NPT2” | G2” | ＜37 | 36-52.5 | 38-52 | 19 | 96 | 77 | 0.9-2.4 | 0.47 |
| JX-7-EX-65A | M63×1.5 | NPT2” | G2” | ＜49 | 46-65 | 38-52 | 19 | 114 | 82 | 0.9-2.4 | 0.45 |
| JX-7-EX-65B | M75×1.5 | NPT2 1/2” | G2 1/2” | ＜55 | 46-65 | 38-58 | 19 | 114 | 93 | 0.9-2.4 | 3 |
| JX-7-EX-78 | M75×1.5 | NPT2 1/2” | G2 1/2” | ＜64 | 57-78 | 47.5-74 | 19 | 119 | 110 | 0.9-2.4 | 2.9 |
| JX-7-EX-88 | M90×1.5 | NPT3” | G3” | ＜75 | 68-88 | 19 | 119 | 121 | 0.9-2.8 | 4 | |
| JX-7-EX-103 | M115×1.5 | NPT4” | G4” | ＜90 | 83-103 | 19 | 125 | 137 | 0.9-2.8 | 4.9 | |
