Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.E.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
More options: Customization is accept.Welcome to inquire.
| Divided Structure Nylon Cable Gland-- Metric thread | |||||
| Product Code | Thread AG | Cable range(mm) | Thread O.D. C1(mm) | Thread length GL(mm) | Spanner Size (mm) |
| JX-NLM12A-DS | M12*1.5 | 3-5.5 | 12 | 8.5 | 18/19 |
| JX-NLM12B-DS | 4.5-7.8 | 12 | 8.5 | 18/19 | |
| JX-NLM16A-DS | M16*1.5 | 3-5.5 | 16 | 10 | 22/19 |
| JX-NLM16B-DS | 4-8 | 16 | 10 | 22/19 | |
| JX-NLM16C-DS | 3-5.5 | 16 | 15 | 22/19 | |
| JX-NLM16D-DS | 4-8 | 16 | 15 | 22/19 | |
| JX-NLM16E-DS | 4-7 | 16 | 10 | 22/22 | |
| JX-NLM16F-DS | 6-10 | 16 | 10 | 22/22 | |
| JX-NLM16G-DS | 4-7 | 16 | 15 | 22/22 | |
| JX-NLM16H-DS | 6-10 | 16 | 15 | 22/22 | |
| JX-NLM20A-DS | M20*1.5 | 5-9 | 20 | 10 | 24/24 |
| JX-NLM20B-DS | 6-12.5 | 20 | 10 | 24/24 | |
| JX-NLM20C-DS | 6-11 | 20 | 10 | 27/27 | |
| JX-NLM20D-DS | 9-14 | 20 | 10 | 27/27 | |
| JX-NLM20E-DS | 6-11 | 20 | 15 | 27/27 | |
| JX-NLM20F-DS | 9-14 | 20 | 15 | 27/27 | |
| JX-NLM22A-DS | M22*1.5 | 6-11 | 22 | 10 | 27/27 |
| JX-NLM22B-DS | 9-14 | 22 | 10 | 27/27 | |
| JX-NLM25A-DS | M25*1.5 | 6-11 | 25 | 10 | 33/27 |
| JX-NLM25B-DS | 9-14 | 25 | 10 | 33/27 | |
| JX-NLM25C-DS | 10-16 | 25 | 10 | 33/33 | |
| JX-NLM25D-DS | 13-18 | 25 | 10 | 33/33 | |
| JX-NLM25E-DS | 10-16 | 25 | 15 | 33/33 | |
| JX-NLM25F-DS | 13-18 | 25 | 15 | 33/33 | |
| JX-NLM32A-DS | M32*1.5 | 15-22 | 32 | 15 | 41/42 |
| JX-NLM32B-DS | 18-25 | 32 | 15 | 41/42 | |
| JX-NLM40A-DS | M40*1.5 | 20-26 | 40 | 20 | 50/52 |
| JX-NLM40B-DS | 24-31 | 40 | 20 | 50/52 | |
| JX-NLM50A-DS | M50*1.5 | 25-33 | 50 | 22 | 62/62 |
| JX-NLM50B-DS | 31-41 | 50 | 22 | 62/62 | |
| JX-NLM63A-DS | M63*1.5 | 39-46 | 63 | 25 | 75/75 |
| JX-NLM63B-DS | 44-51 | 63 | 25 | 75/75 | |
| JX-NLM75A-DS | M75*2.0 | 50-56 | 75 | 25 | 92/92 |
| JX-NLM75B-DS | 56-66 | 75 | 25 | 92/92 | |
| JX-NLM90A-DS | M90*2.0 | 58-68 | 90 | 25 | 110/110 |
| JX-NLM90B-DS | 66-77 | 90 | 25 | 110/110 | |

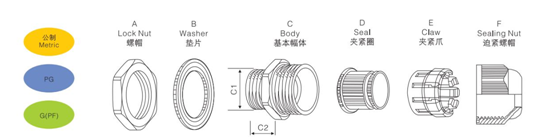

The Drawing of Divided Structure Nylon Cable Gland
