Thread Size: PG Thread
Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.E.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005), Gray(RAL7035), other colors are available upon requests.
More options: Customization is accept. Welcome to inquire.
| Divided Structure Nylon Cable Gland-- PG thread | |||||
| Product Code | Thread AG | Cable range(mm) | Thread O.D. C1(mm) | Thread length GL(mm) | Spanner Size (mm) |
| JX-NLPG7A-DS | PG7 | 3-5.5 | 12.5 | 8 | 17/19 |
| JX-NLPG7B-DS | 4.5-7.8 | 12.5 | 8 | 17/19 | |
| JX-NLPG9A-DS | PG9 | 3-5.5 | 15.2 | 8.2 | 22/19 |
| JX-NLPG9B-DS | 4.5-7.8 | 15.2 | 8.2 | 22/19 | |
| JX-NLPG11A-DS | PG11 | 4-7 | 18.6 | 10 | 24/22 |
| JX-NLPG11B-DS | 6-10 | 18.6 | 10 | 24/22 | |
| JX-NLPG13.5A-DS | PG13.5 | 5-8.8 | 20.4 | 10 | 27/24 |
| JX-NLPG13.5B-DS | 7-12.5 | 20.4 | 10 | 27/24 | |
| JX-NLPG16A-DS | PG16 | 6-11 | 22.5 | 10.8 | 30/27 |
| JX-NLPG16B-DS | 9-14 | 22.5 | 10.8 | 30/27 | |
| JX-NLPG21A-DS | PG21 | 10-16 | 28.3 | 12 | 36/33 |
| JX-NLPG21B-DS | 13-18 | 28.3 | 12 | 36/33 | |
| JX-NLPG29A-DS | PG29 | 15-22 | 37 | 12 | 46/41 |
| JX-NLPG29B-DS | 18-25 | 37 | 12 | 46/41 | |
| JX-NLPG36A-DS | PG36 | 20-26 | 47 | 14 | 57/52 |
| JX-NLPG36B-DS | 24-31 | 47 | 14 | 57/52 | |
| JX-NLPG42A-DS | PG42 | 25-33 | 54 | 15 | 64/62 |
| JX-NLPG42B-DS | 31-41 | 54 | 15 | 64/62 | |

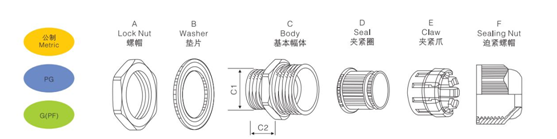

The Drawing of Divided Structure Nylon Cable Gland
