Thread Size: G Thread
Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.E.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
More options: Customization is accept.Welcome to inquire.
| Divided Structure Nylon Cable Gland-- G thread | |||||
| Product Code | Thread AG | Cable range(mm) | Thread O.D. C1(mm) | Thread length C2(mm) | Spanner SizeA&F(mm) |
| JX-NLG1/4A-DS | G1/4’’ | 3-5.3 | 13.157 | 8.5 | 19/19 |
| JX-NLG1/4B-DS | 5-7.8 | 13.157 | 8.5 | 19/19 | |
| JX-NLG3/8A-DS | G3/8’’ | 4-7 | 16.662 | 10 | 22/22 |
| JX-NLG3/8B-DS | 6-10 | 16.662 | 10 | 22/22 | |
| JX-NLG1/2A-DS | G1/2’’ | 5-8.8 | 20.955 | 10 | 27/24 |
| JX-NLG1/2B-DS | 7-12.5 | 20.955 | 10 | 27/24 | |
| JX-NLG3/4A-DS | G3/4’’ | 7-13 | 26.441 | 12 | 36/33 |
| JX-NLG3/4B-DS | 12.5-18 | 26.441 | 12 | 36/33 | |
| JX-NLG1A-DS | G1’’ | 15-22 | 33.249 | 15 | 46/41 |
| JX-NLG1B-DS | 17-25 | 33.249 | 15 | 46/41 | |
| JX-NLG1 1/4A-DS | G11/4’’ | 17-25.5 | 41.91 | 15 | 57/52 |
| JX-NLG1 1/4B-DS | 24-32 | 41.91 | 15 | 57/52 | |
| JX-NLG1 1/2A-DS | G11/2’’ | 25-33 | 48 | 22 | 60/62 |
| JX-NLG1 1/2B-DS | 31-41 | 48 | 22 | 60/62 | |
| JX-NLG2A-DS | G2’’ | 39-46 | 60 | 26 | 72/65 |
| JX-NLG2B-DS | 44-51 | 60 | 26 | 72/65 | |

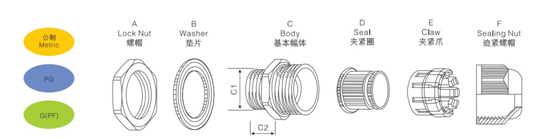

The Drawing of Divided Structure Nylon Cable Gland
