Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.
More options: Customization is acceptable.Welcome to inquire.
| Stainless Steel Cable Gland - G,NPT Thread | |||||||
| Product Code | Thread AG | Cable range(mm) | Thread O.D. (mm) | Thread No. Per Inch | Thread length GL(mm) | Joint Length (mm) | Spanner Size (mm) |
| JX-G1/4-SS | G1/4 | 3-6.5 | 13.1 | 19 | 7 | 19 | 14 |
| JX-G3/8-SS | G3/8 | 4-8 | 16.6 | 19 | 8 | 19 | 18 |
| JX-G1/2-SS | G1/2 | 6-12 | 20.9 | 14 | 8 | 22 | 22 |
| JX-G3/4-SS | G3/4 | 13-18 | 26.4 | 14 | 9 | 25 | 30 |
| JX-G1-SS | G1 | 18-25 | 33.2 | 11 | 11 | 29 | 40 |
| JX-G11/4-SS | G1-1/4 | 25-33 | 41.9 | 11 | 13 | 35 | 50 |
| JX-G11/2-SS | G1-1/2 | 32-38 | 47.8 | 11 | 14 | 37 | 57 |
| JX-G2-SS | G2 | 37-44 | 59.6 | 11 | 14 | 38 | 64 |
| JX-G21/2-SS | G2-1/2 | 42-52 | 75.1 | 11 | 15 | 38 | 77 |
| JX-G3-SS | G3 | 65-70 | 87.8 | 11 | 15 | 48 | 94 |
| JX-NPT1/4-SS | NPT1/4 | 3-6.5 | 13.6 | 18 | 7 | 19 | 14 |
| JX-NPT3/8-SS | NPT3/8 | 4-8 | 17 | 18 | 8 | 19 | 18 |
| JX-NPT1/2-SS | NPT1/2 | 6-12 | 21.2 | 14 | 8 | 22 | 22 |
| JX-NPT3/4-SS | NPT3/4 | 13-18 | 26.5 | 14 | 9 | 25 | 30 |
| JX-NPT1-SS | NPT1 | 18-25 | 33.2 | 11.5 | 11 | 29 | 40 |
| JX-NPT11/4-SS | NPT1-1/4 | 25-33 | 41.9 | 11.5 | 13 | 35 | 50 |
| JX-NPT11/2-SS | NPT1-1/2 | 32-38 | 48 | 11.5 | 14 | 37 | 57 |
| JX-NPT2-SS | NPT2 | 37-44 | 60 | 11.5 | 14 | 38 | 64 |
| JX-NPT21/2-SS | NPT2-1/2 | 42-52 | 72.6 | 8 | 15 | 38 | 77 |
| JX-NPT3-SS | NPT3 | 65-70 | 88.6 | 8 | 15 | 48 | 94 |

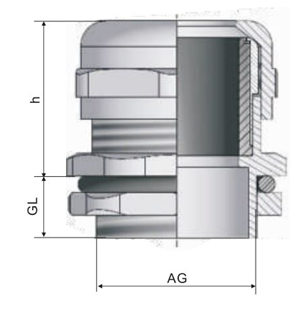

The Drawing of Stainless Steel Gland
